Water’s Edge Graphics

Sometimes, hand painted signs are the most practical option for extraordinary projects. The entrance door graphics at Water’s Edge in Dundee quayside was one such project.

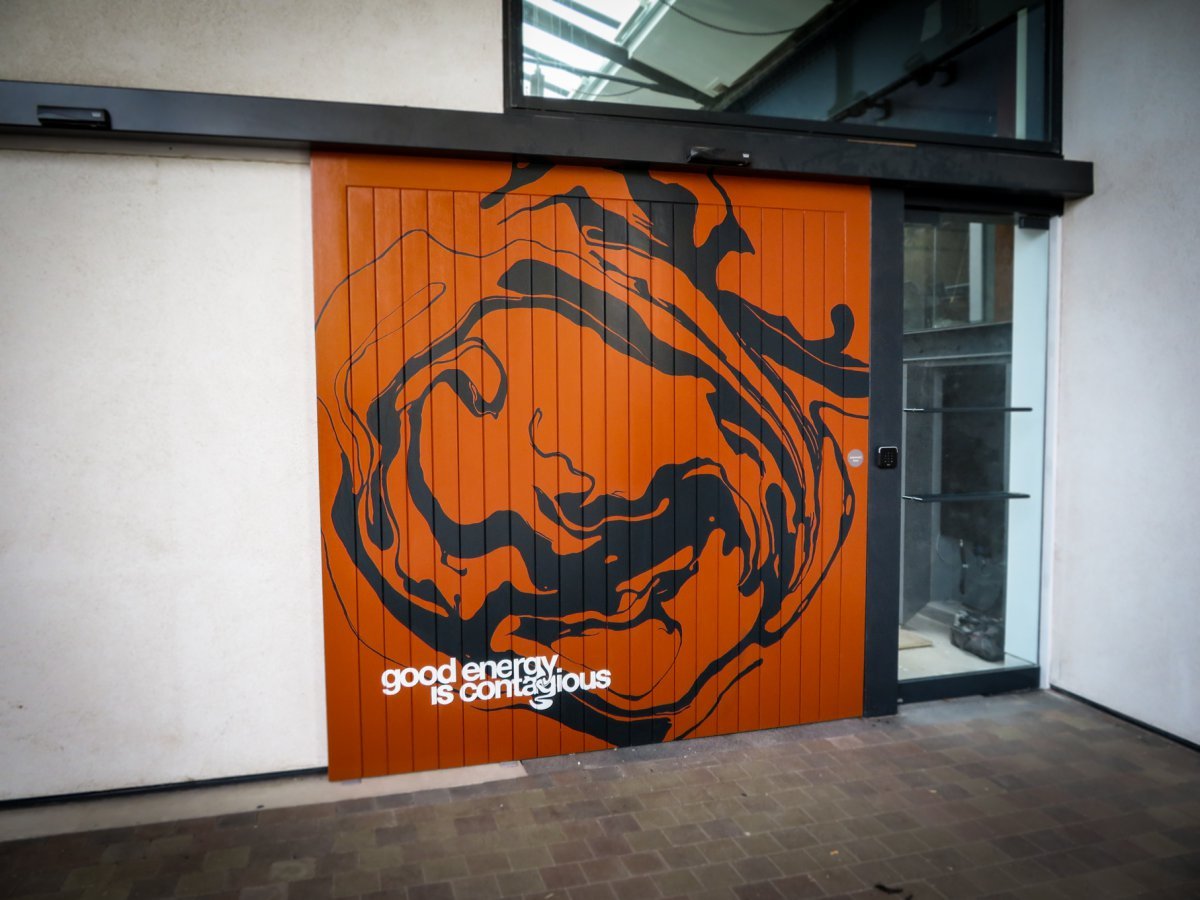

Hand painted door sign

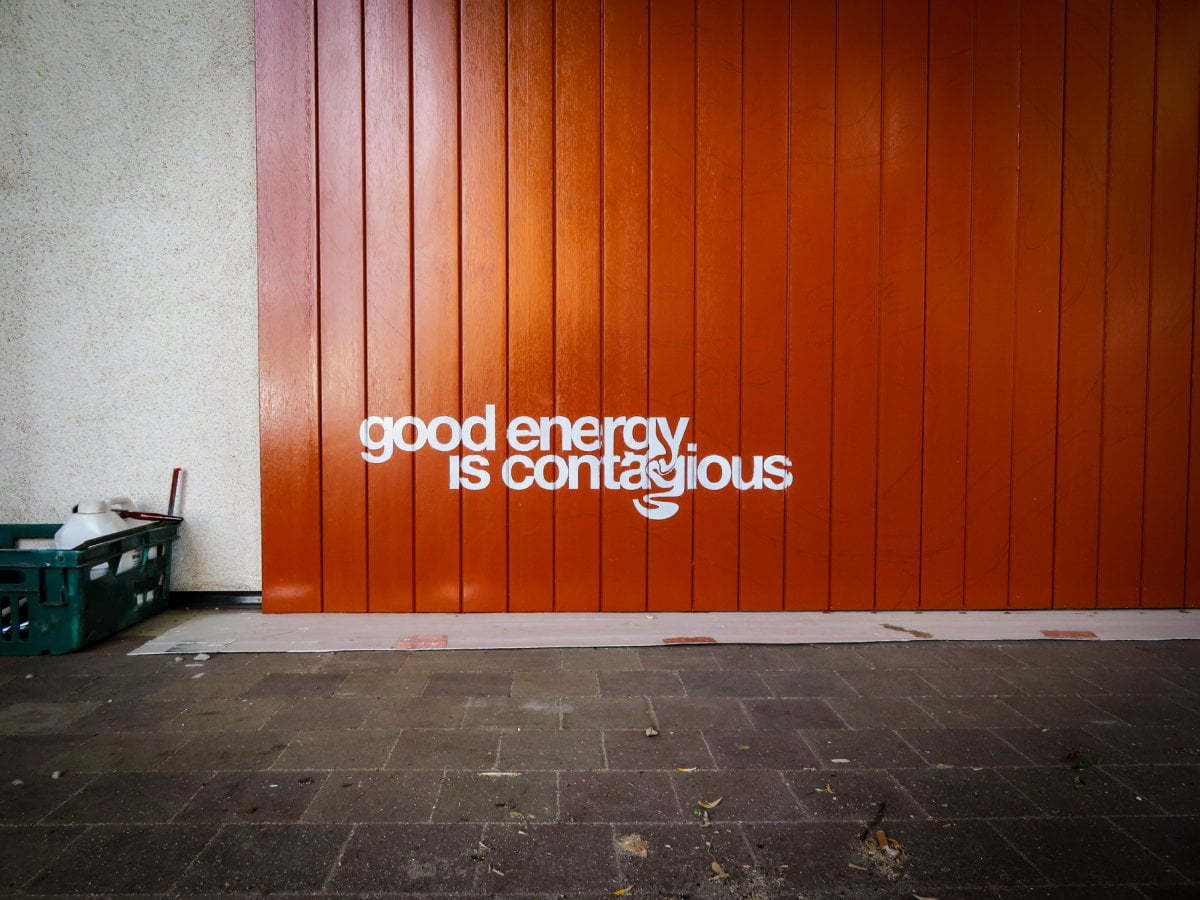

The first coat on the lettering

Elastic Creative, an Edinburgh based design studio, contacted me to ask advice on how to create their design on the entrance door. I surveyed the site and after my quote was accepted, the designers supplied the scaled artwork and paint codes.

Signwriting on doors

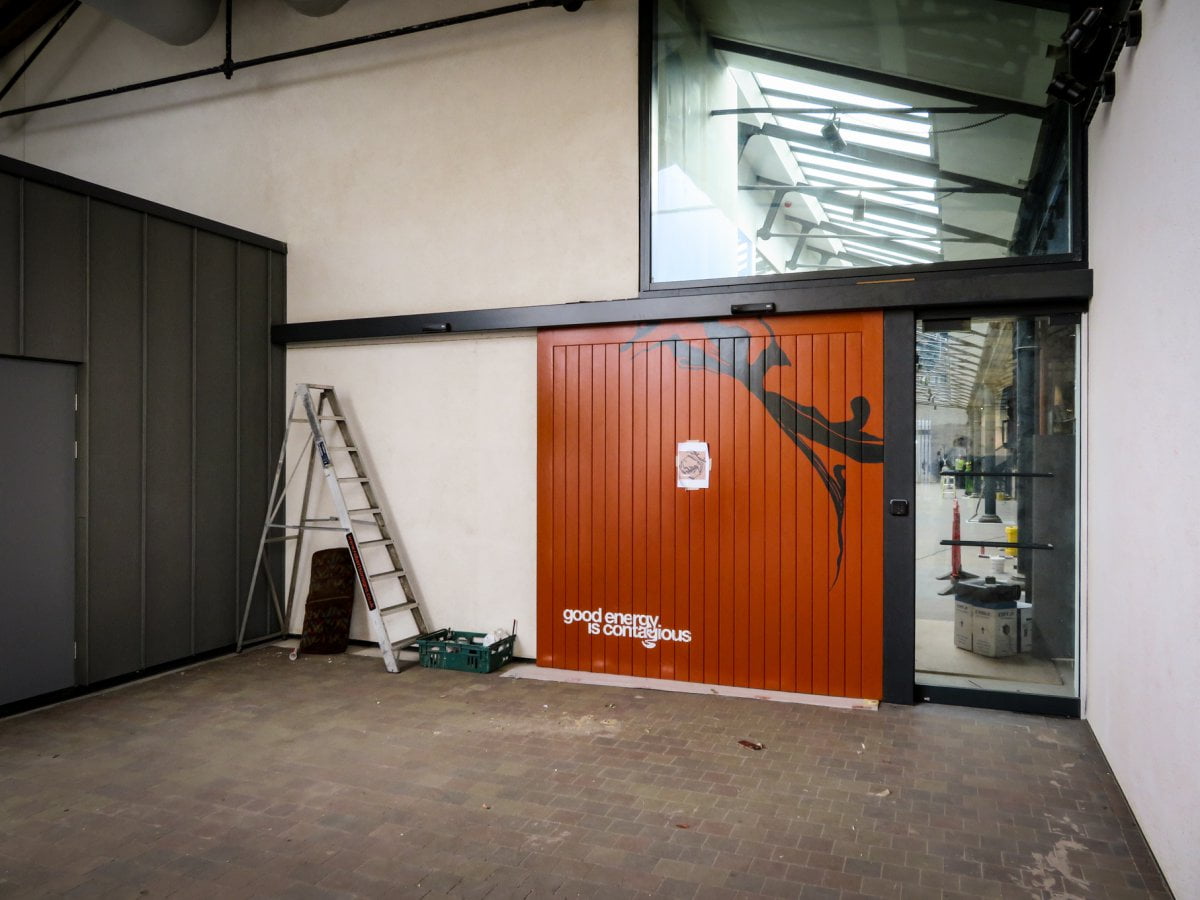

Beginning to fill in the graphics

The sliding door was fabricated with vertical, wooden timbers which had recessed grooves every one hundred millimetres. These v-shaped grooves made it difficult for vinyl to adhere properly to the treated wood surface. The painted option was the most practical and trusted to last.

Painted door graphics
Gradually and carefully painting between the V grooves

Once the artwork had been transferred to acetate, the design was projected directly onto the door. The intricate graphic was drawn lightly with soft, coloured pencils as well as the lettering low to the ground. Once any amendments were made to allow for the recesses, we were then ready to paint.

Painted graphics

The painting was a steady task as applying too much paint would cause inevitable runs in the recesses. So, by slowly following the pencilled lines, we were eventually able to fill in the whole coloured design. Then we did it again, as a second coat to make the colour solid and build the layers of paint. The lettering at the bottom left was the trickiest, as this required lying horizontal on the ground. The entire project lasted just over two days.

Painted signs

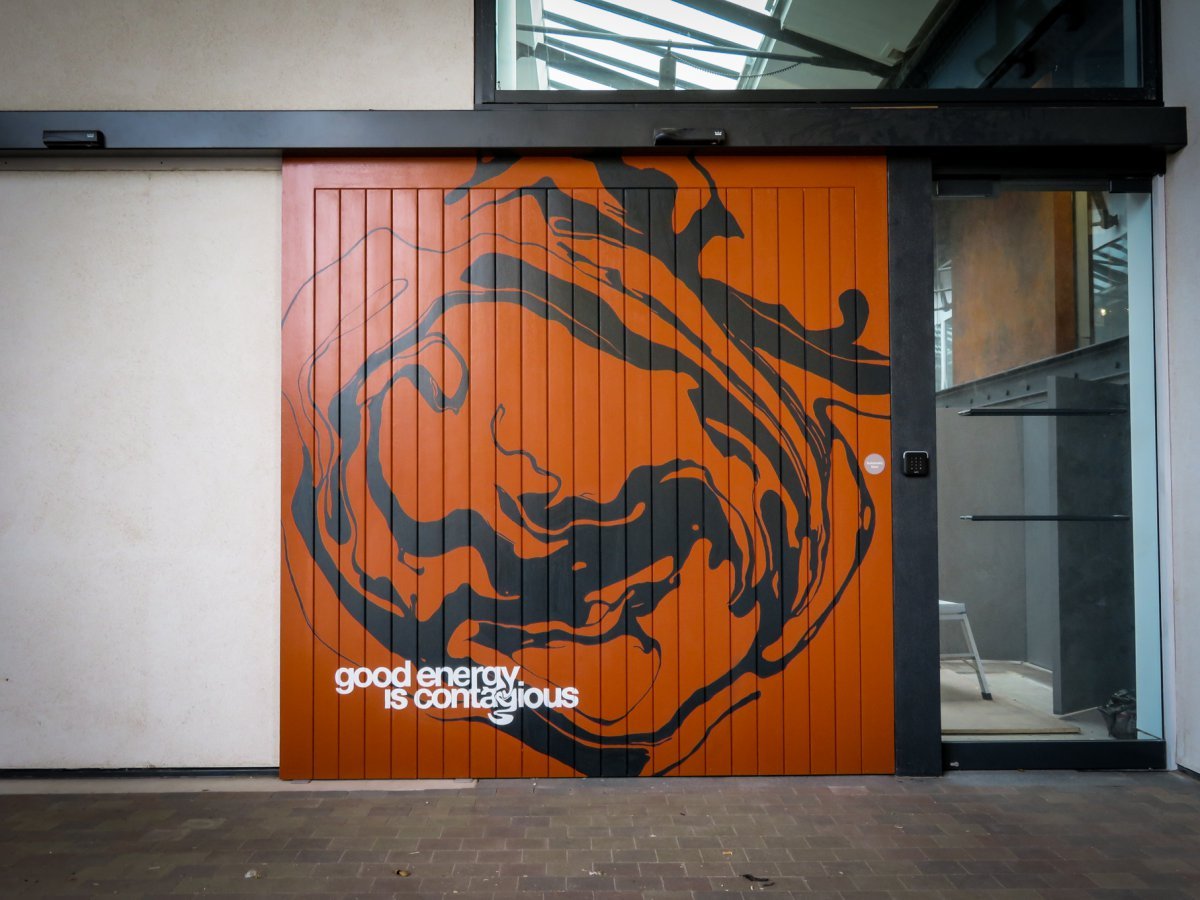

All completed with two coats in just over two days

Do you have a hand painted sign project you would like to discuss? Get in touch to find out more.
